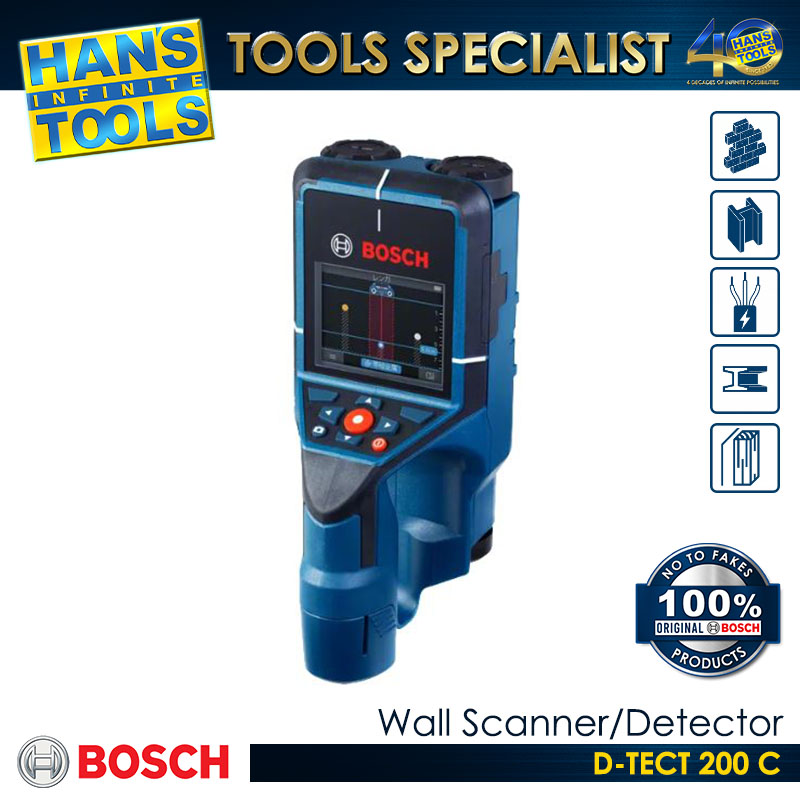

Bosch D-TECT 200 C Wall Scanner/Detector

₱38,319.00

SPECIFICATIONS

Dust and splash protection: IP 5X
Bosch Radar Technology: yes
Max. detection depth: 200 mm
Detectable objects: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, low-voltage & data cables (Three-phase power cables, cavities), non-live cables, wooden substructures, water-filled plastic pipes, Empty plastic pipes
Detection depth, dry concrete, max.: 200 mm
Detection depth, early age concrete, max.: 60 mm
Detection depth, other wall types, max.: 80 mm
Detection depth, magnetic metal, max.: 200 mm
Detection depth, non-magnetic metal, max.: 80 mm
Detection depth, live cables, max.: 80 mm
Detection depth, wooden substructures, max.: 38 mm
Accuracy: ±5 mm
Views: Object view, Spot view, Signal View, Signal View 2D
Wall types: Concrete, Early age concrete, Drywall, Brick/Universal, Horizontal coring brick, Vertical coring brick, Panel Heating
Documentation via: USB-C, SD-Card
Updatable: yes
Material identification: Magnetic metal, Non-magnetic metal, Non-metal material, Live cable
Power supply: 12 V Li-Ion battery, 10.8 V-LI ION battery, 4 x 1.5 V LR6 (AA)
Weight, approx.: 0.64 kg
Additional function: Leakage detection, distance measurement

Description

More depth for better safety – Increased maximum detection depth to 200mm with object depth indication
All-round detection – Detection of all common objects, even in narrow spots with the unique spot mode
See the unseen – Clear visualisation of detected objects including the new leakage detection function through the intuitive HMI
