Price range: ₱550.00 through ₱1,640.00
Four-Way Measurement: Features specialized jaws and a depth rod:
External Jaws: For measuring the thickness or outside diameter of an object.
Internal Jaws: For measuring the inside diameter of holes or slots.
Depth Rod: A thin probe at the end for measuring the depth of holes or recesses.
Step Measurement: The back of the head can measure the “step” between two surfaces.
High Precision: Offers a standard resolution of 0.05 mm ($1/128$ inches), making it vastly more accurate than a standard measuring tape.
Dual-Scale Calibration: The blade features both Metric (mm) and Imperial (inches) markings, allowing for easy conversion between systems.
Fine-Adjustment Thumb Wheel: Most models include a thumb roller that allows for smooth, controlled movement of the sliding jaw for a more delicate touch.
Locking Screw: A small knurled screw on top of the slider allows you to “lock” a measurement in place so you can remove the tool from the workpiece and read it clearly.
Protective Case: Usually supplied in a fitted PVC or hard-shell case to prevent the delicate jaws from being nicked or misaligned during storage.

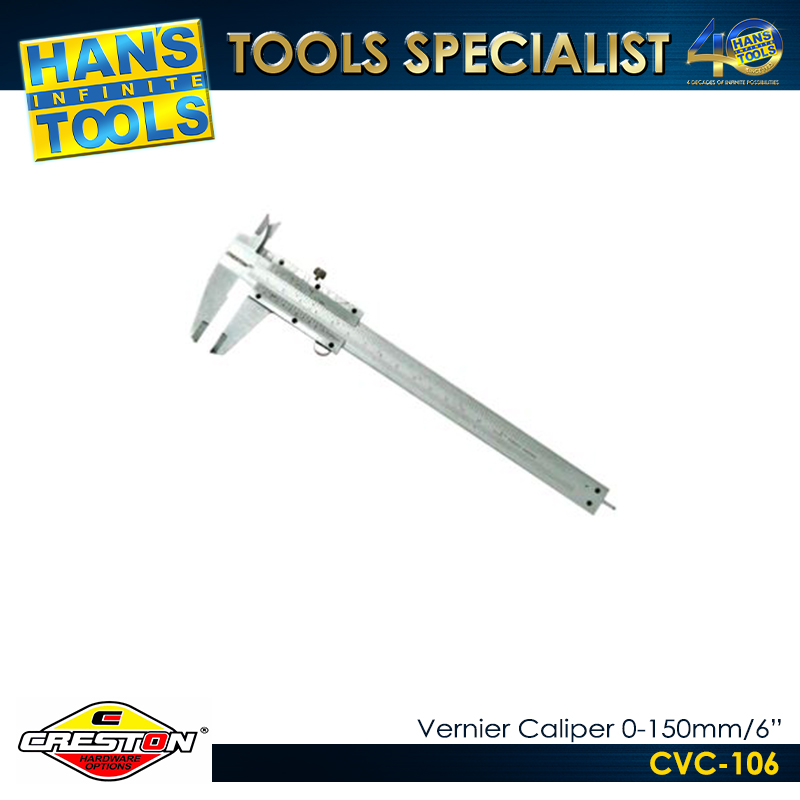

The tool is typically constructed from hardened stainless steel or high-carbon steel with a satin chrome finish to reduce glare and resist corrosion. It utilizes a dual-scale system (main scale and a sliding vernier scale) to provide high-precision readings. Unlike a tape measure, a caliper is a four-way measurement tool, capable of measuring external diameters, internal diameters, depths, and steps.
| Size | 0-150" / 6", 0-200" / 8", 0-300 / 12" |
|---|
