HANS INFINITE TOOLS > Products > Proxxon Micro Miller MF70 [27110]

Proxxon Micro Miller MF70 [27110]

₱31,008.00

Categories: , Tags: , ,

Technical data:

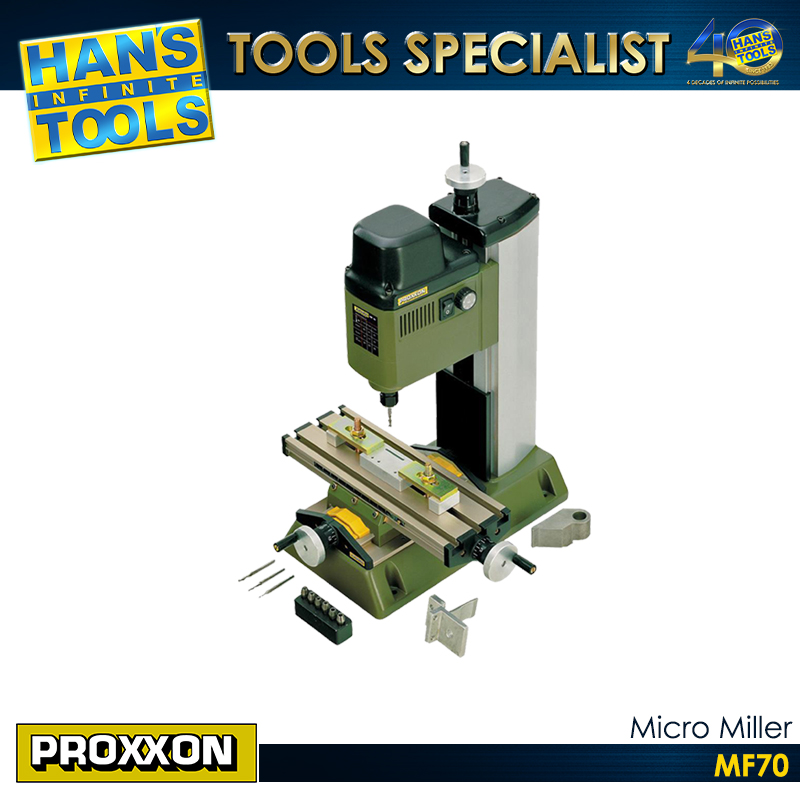

230V, 100W, 50/60Hz. Spindle speeds 5,000 – 20,000rpm. Table 200 x 70mm with X-Y travel of 134 and 46mm respectively, with vertical travel 80mm. Footprint size 130 x 225mm and overall height 370mm. Weight approx. 7kg. The clamping blocks depicted are included too, but not the workpiece!

Description

  • MICRO Milling machine MF 70
  • The accurate milling machine for delicate projects. Spindle speeds 5,000 – 20,000rpm. For work with extremely small cutters.
  • Stable grey-cast iron machine base, vertical guide and compound table. Free from play, readjustable dovetail gib in all axes. Die-cast aluminium arm housing, with 24-pin special motor (balanced). For vibration-free work at high speeds.
  • The triple slit, hardened steel MICROMOT collets cover 1 – 1.5 – 2 – 2.35 – 3 – 3.2mm. The table is fitted with 3 T-slots of the 12 x 6 x 5mm MICROMOT norm. An adjustable ruler scale eases the positioning of the workpiece.
