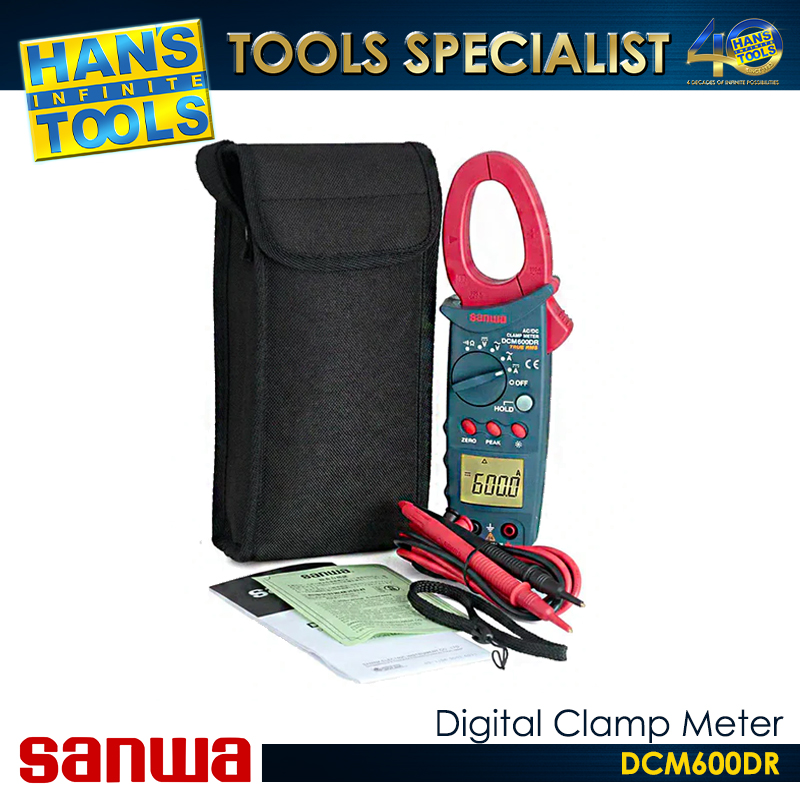

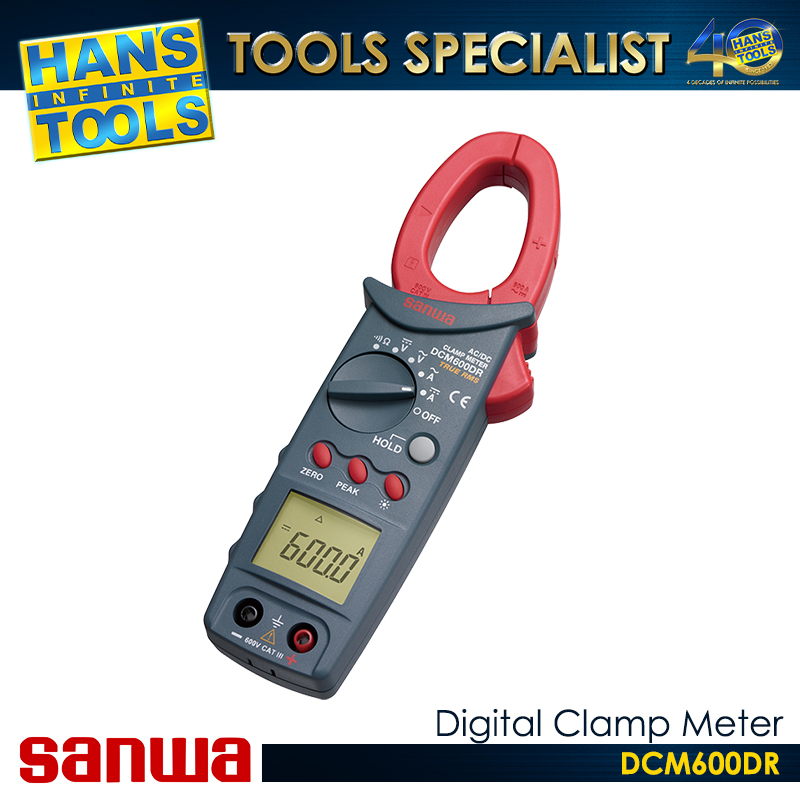

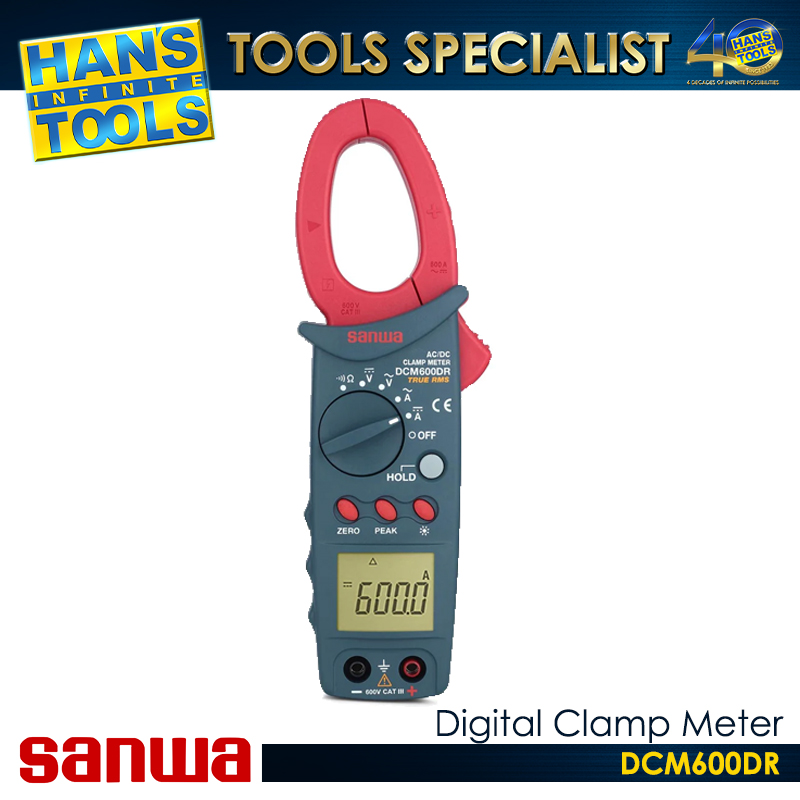

Sanwa DCM600DR Digital Clamp meter DC/AC+True RMS
₱23,558.00
| Function |
Measuring range |
Best accuracy |
Resolution |
Input impedance |
| DCA |
60/600A |
±(2%+5) |
0.01A |
|
| ACA |
60/600A |
±(2%+5) |
0.01A |
| DCV |
600V |
±(1%+2) |
0.1V |
1MΩ |
| ACV |
600V |
±(1.2%+5) |
0.1V |
| Resistance |
999.9Ω |
±(1%+7) |
0.1Ω |
|
| Continuity |
Buzzer sounds at less than 40Ω Open voltage: approx. 2.9V |
| Sampling rate |
3 times/sec. |
| Bandwidth |
50-500Hz |
| Display |
6000 |
| Clamp diameter/Conductor size |
Φ30mm/10×50mm |
| Battery |
LR03×2 |
| Battery life |
Approx. 40 hrs. (Backlight off) |
| Size/Mass |
H208×W69×D38mm/Approx. 260g |
| Safety standards |
IEC61010 CAT.Ⅲ600V |
