Description
- One-shot or continuous measurement push switch
- DCV measurement range (DC60V)
- Auto discharge function
- Inner battery check range
- Shoulder Strap

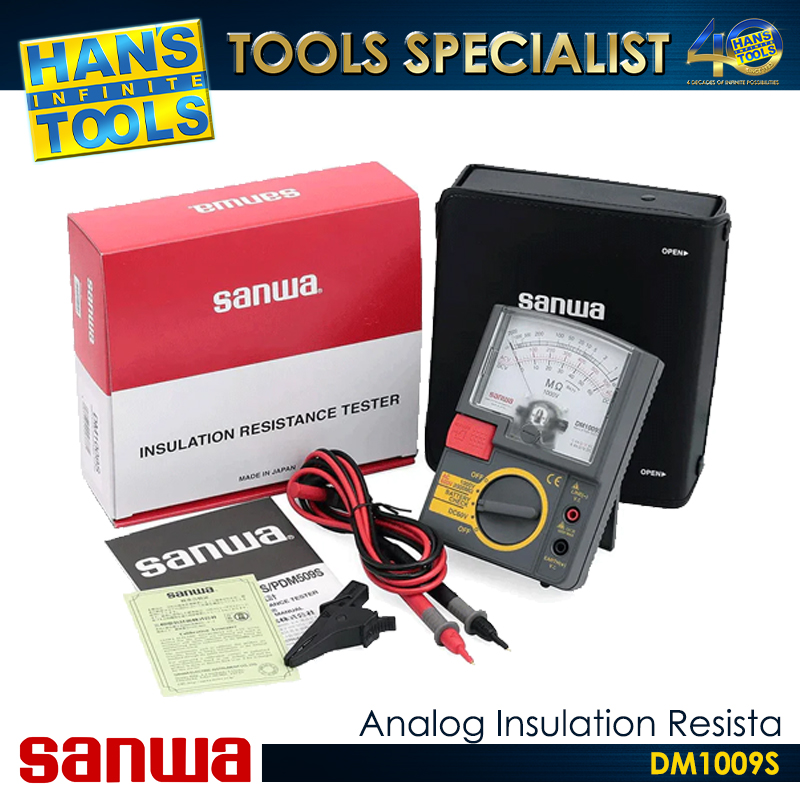

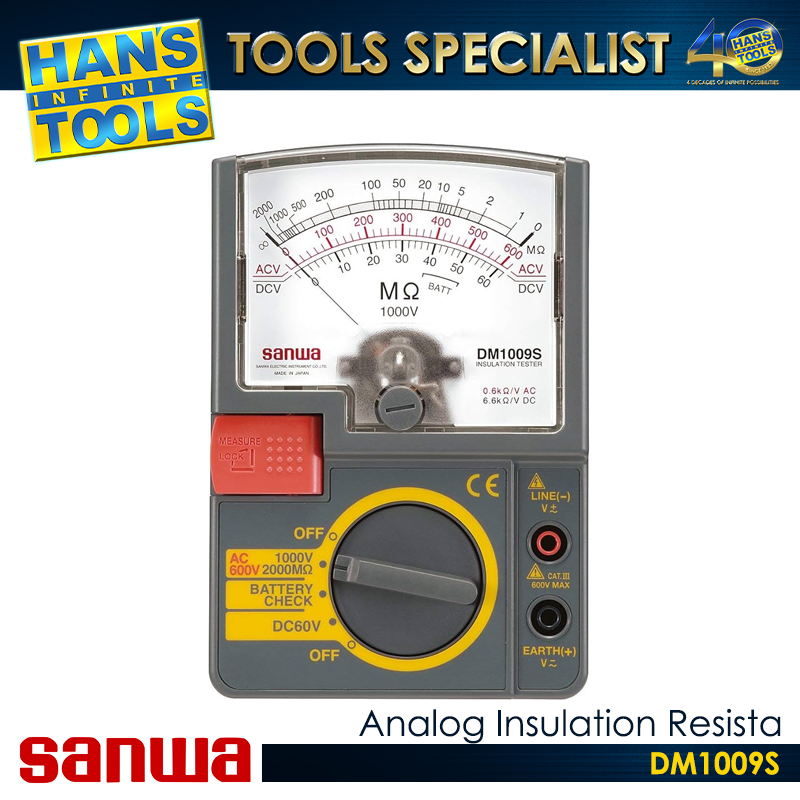

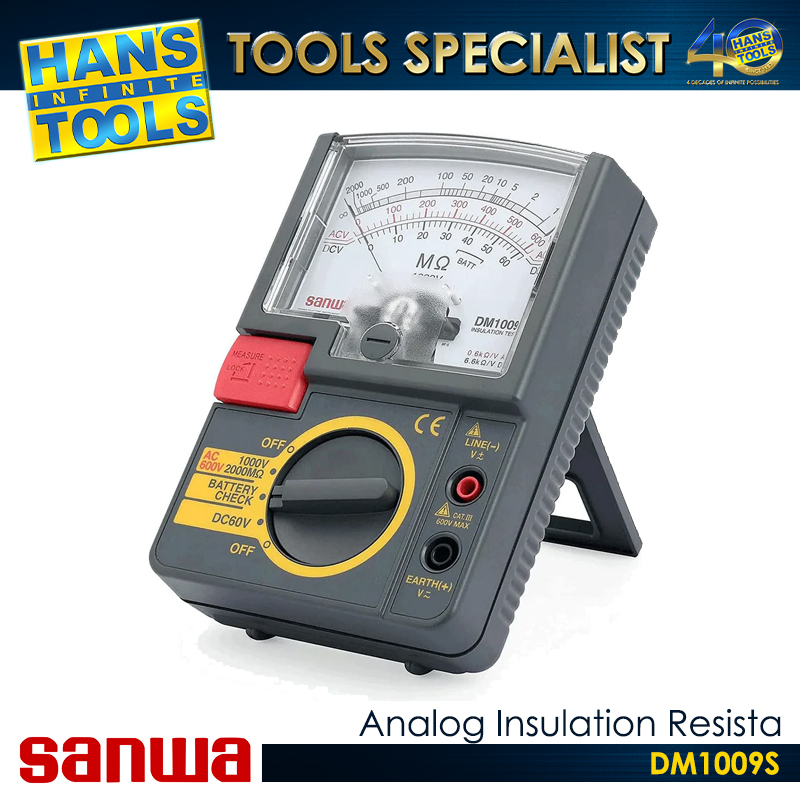

Sanwa DM1009S Analog Insulation Resistance 1000V/2000MΩ
₱13,898.00
| Scale(MΩ) | 1～2～1000～2000MΩ |
| Tolerance | ± 5% of reading（1st effective measurement range : written in thick print above） ±10% of reading（2nd effective measurement range : written in small type above) |
| ACV | 600V |
| Tolerance | Within ±5% of the max. scale value(50～60Hz sine wave) |
| DCV | 60V |
| Tolerance | Within ±5% of the max. scale value |
| Rated current | 1.0～1.2mA |
| Battery | 6LF22/6LR61(9V alkaline battery)x1 |
| Size/Mass | H144×W99×D43mm/Approx. 310g |
| Safety standard | IEC61010 CAT.Ⅲ 600V |
