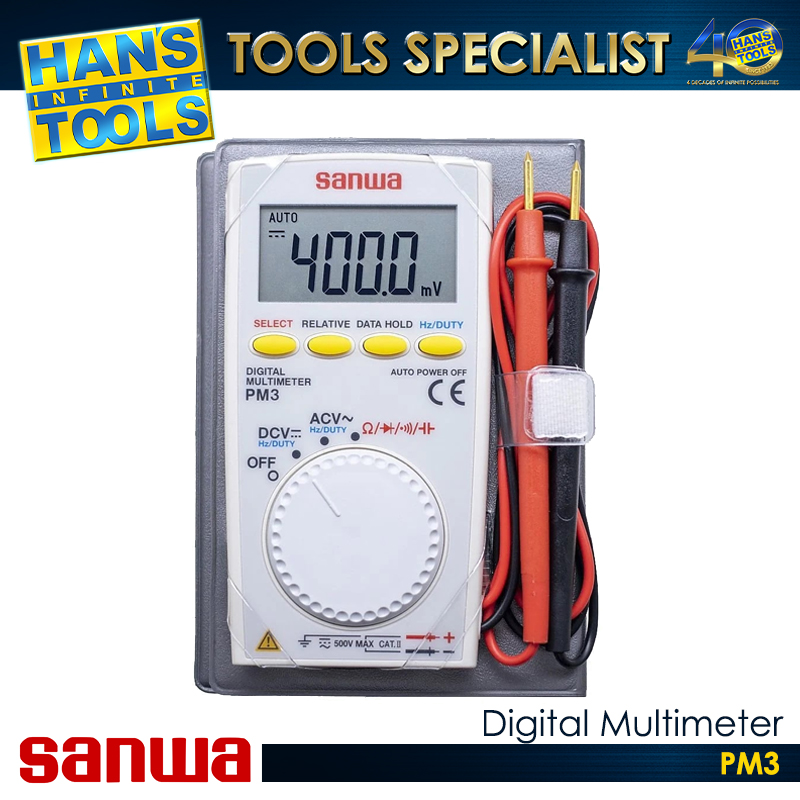

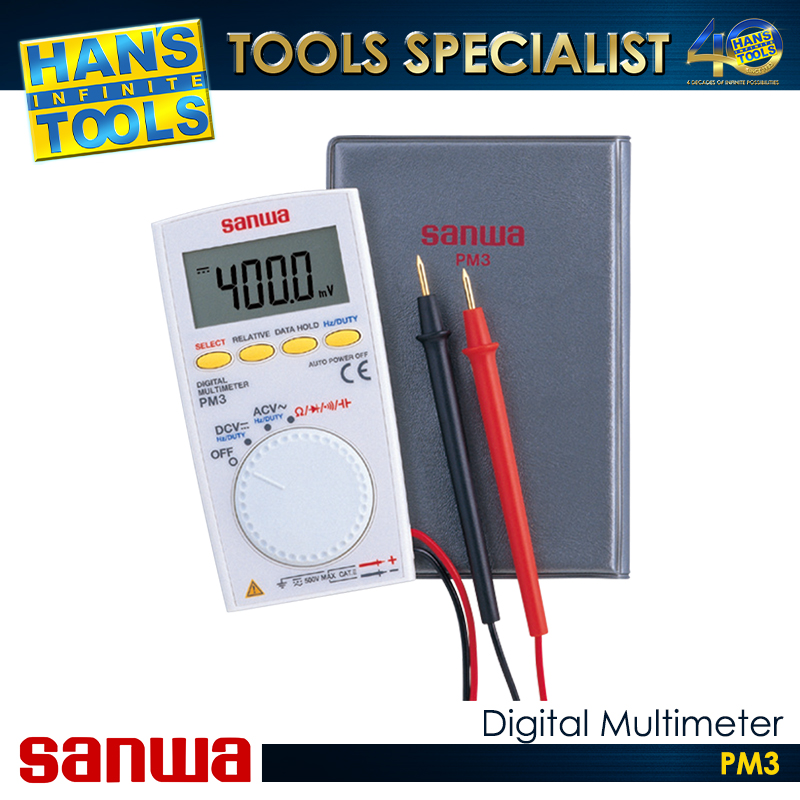

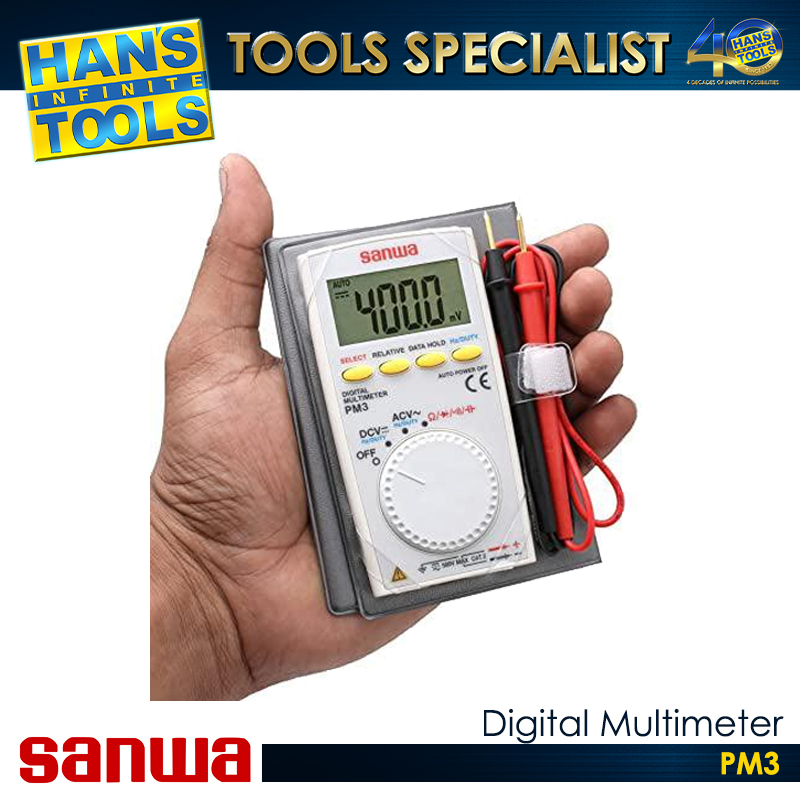

Sanwa PM3 Digital Multimeter
₱2,998.00
| PM3 |
Measuring range |
Best accuracy |
Resolution |
Input impedance |
| DCV |
400m/4/40/300V |
±(0.7%+3) |
0.1mV |
10M～100MΩ |
| ACV |
4/40/300V |
±(2.3%+5) |
0.001V |
10M～11MΩ |
| Resistance |
400/4k/40k/400k/4M/40MΩ |
±(2.0%+5) |
0.1Ω |
|
| Capacitance |
5n/50n/500n/5μ/50μ/200μF |
±(5.0%+10) |
0.001nF |
| Frequency |
9.999/99.99/999.9/9.999k/60.00kHz |
±(0.7%+5) |
0.001Hz |
| Duty cycle |
0.1～99% |
| Continuity |
Buzzer sounds at less than 10Ω～120Ω Open voltage:Approx.0.4V |
| Diode test |
Open voltage:approx.1.5V |
| Display |
numeral display 4000 |
| Sampling rate |
3 times/sec. |
| Bandwidth |
40～400Hz |
| Bettry |
Coin type lithium battery CR2032(3V)x1 |
| Bettery life |
Approx.150h at DCV |
| Size/Mass |
H108×W56×D11.5mm/Approx.50g |
| Test lead length/Pin tip |
Length: approx.0.5m/18mm |
| Safety |
IEC61010 CAT.Ⅲ300V |
