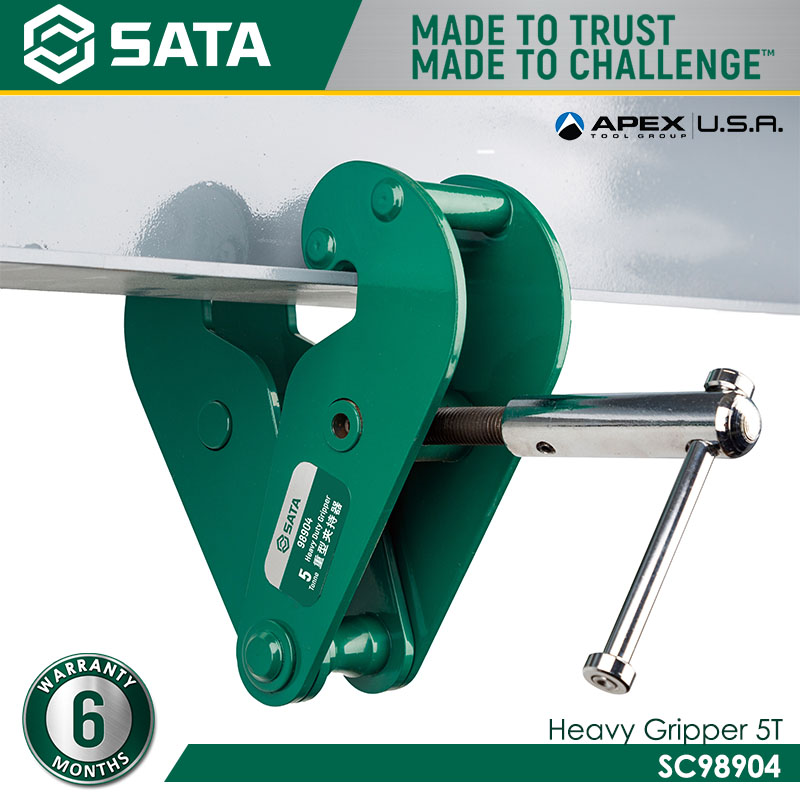

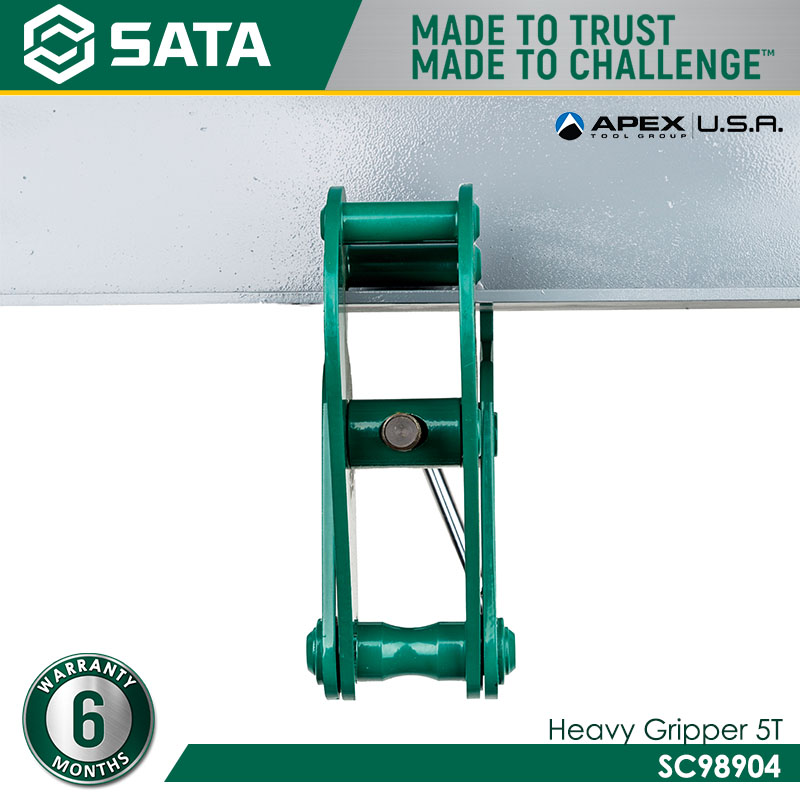

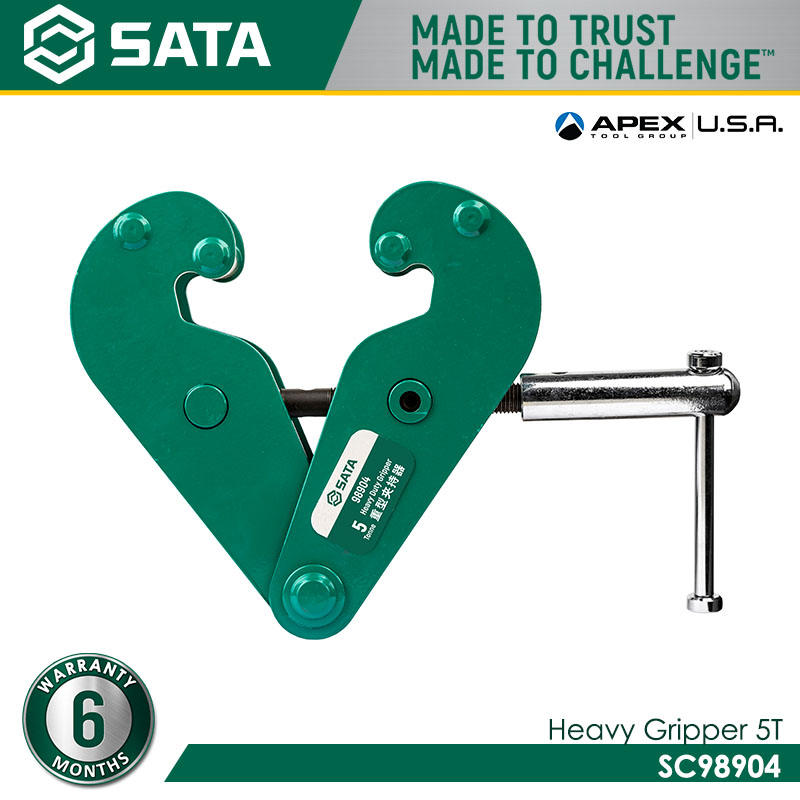

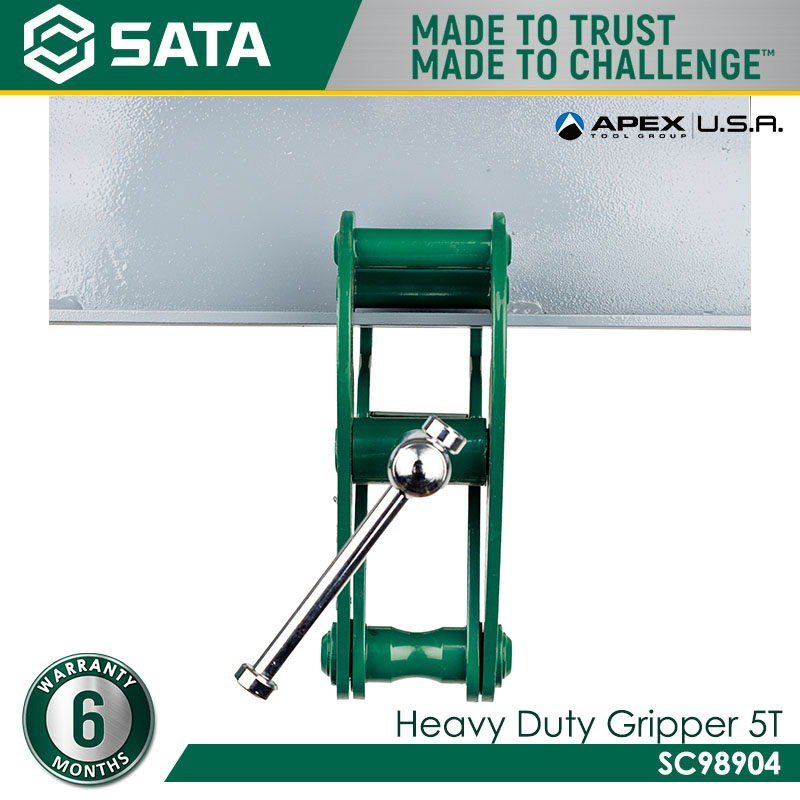

SATA SC98904 Heavy Gripper 5T
₱5,875.00
•Suitable for clamping I-steel and hanging slings
•Safety factor higher than 4:1 for safety and reliability
•Adjustable clamping range for I-beams in various width
| Function | SC98904 |
|---|---|
| Rated Load (tons) | 5 |
| Width Range of I-Track (mm) | 80 ~ 320 |
| Main Dimensions | |
| A max. | 365 |
| B min. | 220 |
| B max. | 498 |
| C | 117 |
| δ | 10 |
| E | 271 |
| F min. | 168 |
| F max. | 240 |
| G min. | 57 |
| D | 30 |
| Unit Weight (kg) | 11.5 |
