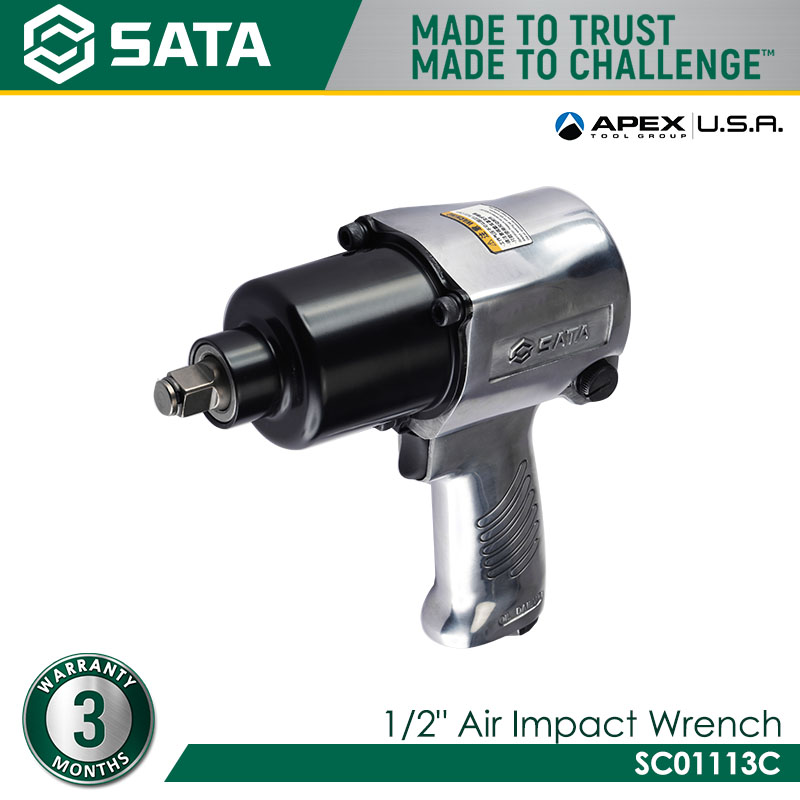

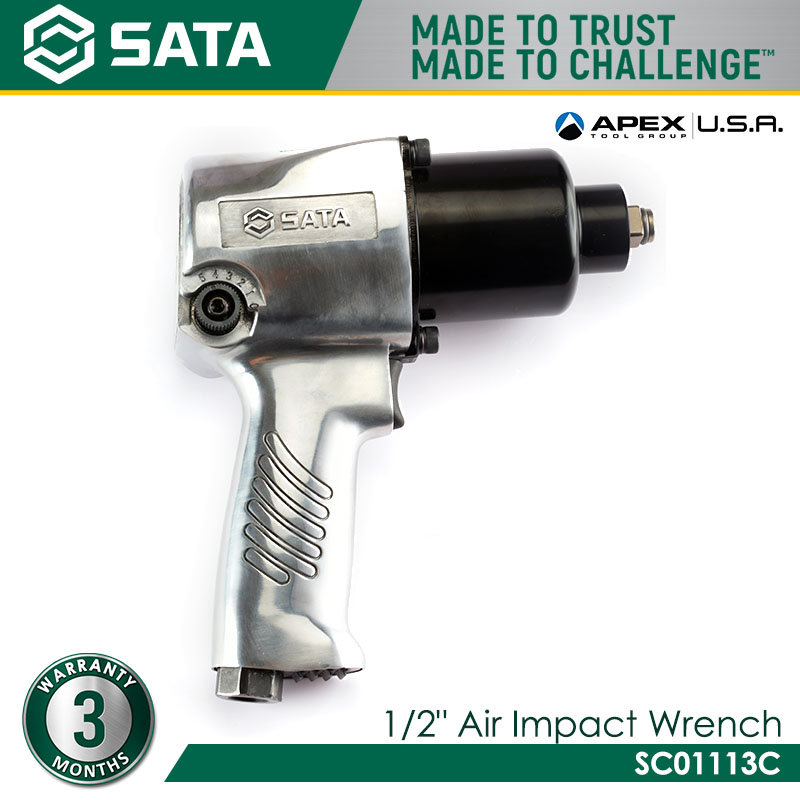

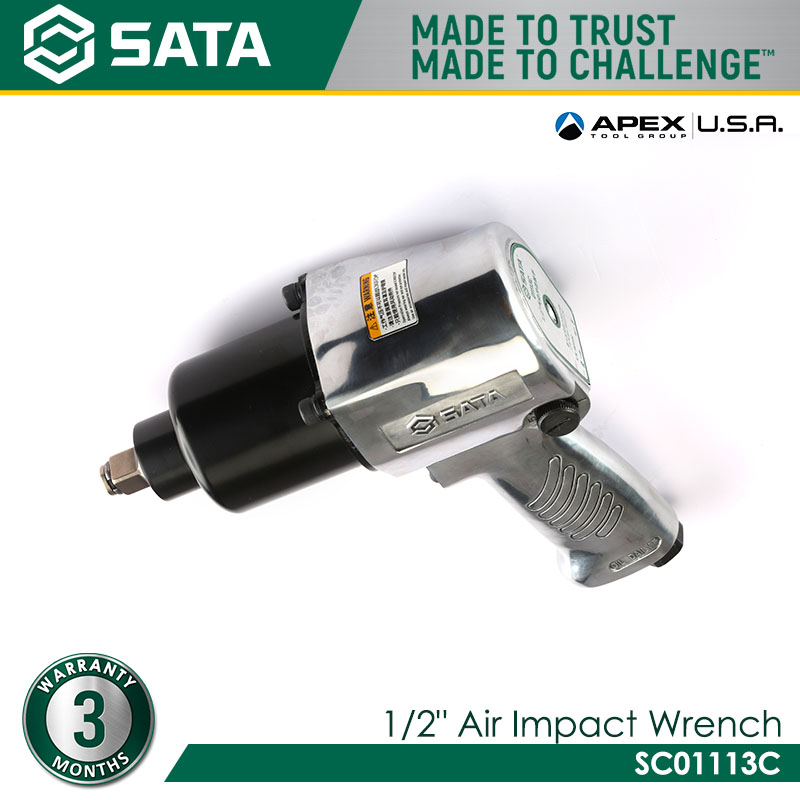

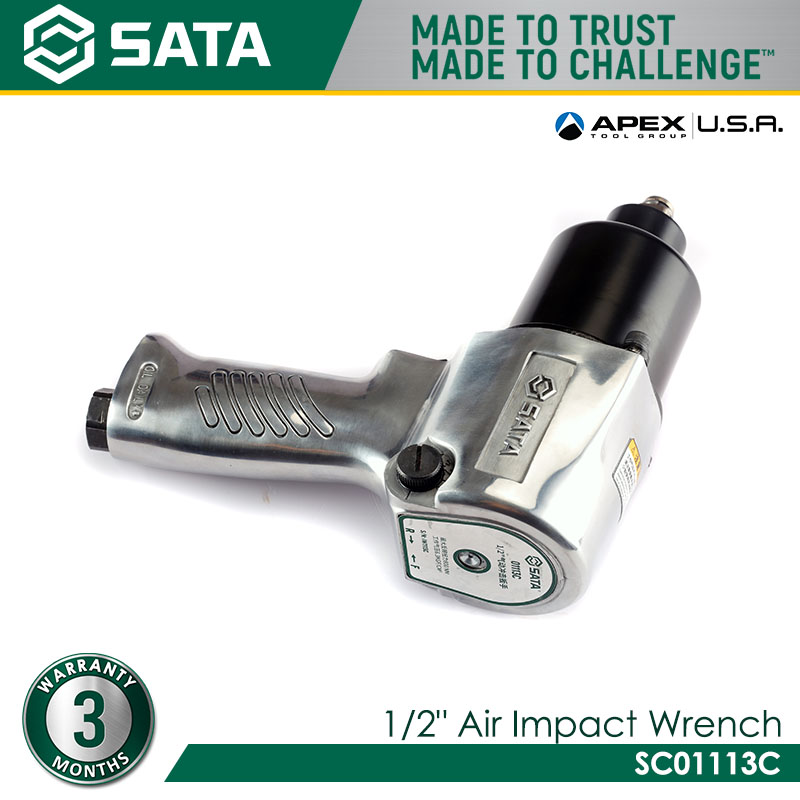

SATA SC01113C 1/2″ Air Impact Wrench

7,619.00

•Compact air wrench, total length 125mm
•High speed, high impact frequency
•Net weigh 1.5kg

Function 01113C
Output End Spec. (in.) 1/2″ Male
Idling Speed (RPM) 7500
Working Torque (N·m) 600
Max. Reverse Torque (N·m) 800
Tighten Bolt Capacity (DIN 12.9) M18
Air Consumption (CFM) 4.2
Air Consumption (L/min)
Noise dB(A) 110
L×W×H (mm) 192×195×69
N.W. (kg) 2.58
Air Inlet Dimension (NPT) 1/4″
Inner Diameter of Pipe (mm) 10
Standard Working Pressure (kgf/cm²) 6.35
Standard Working Pressure (PSI) 90

Description

1 For tightening capability standard for bolts, refer to bolts with strength level of 12.9 in DIN 267. 2 Noise level is sound
pressure of level A. 3 Working air pressure refers to the real-time dynamic air pressure measured at the air inlet of the
product during idling operation; 4 Working torque refers to the accumulated torque actually output by the tool running
forward for 5 seconds under working pressure; 5 Maximum reversing torque refers to the torque actually accumulated
when the tool reverses for 15 seconds under operating air pressure
