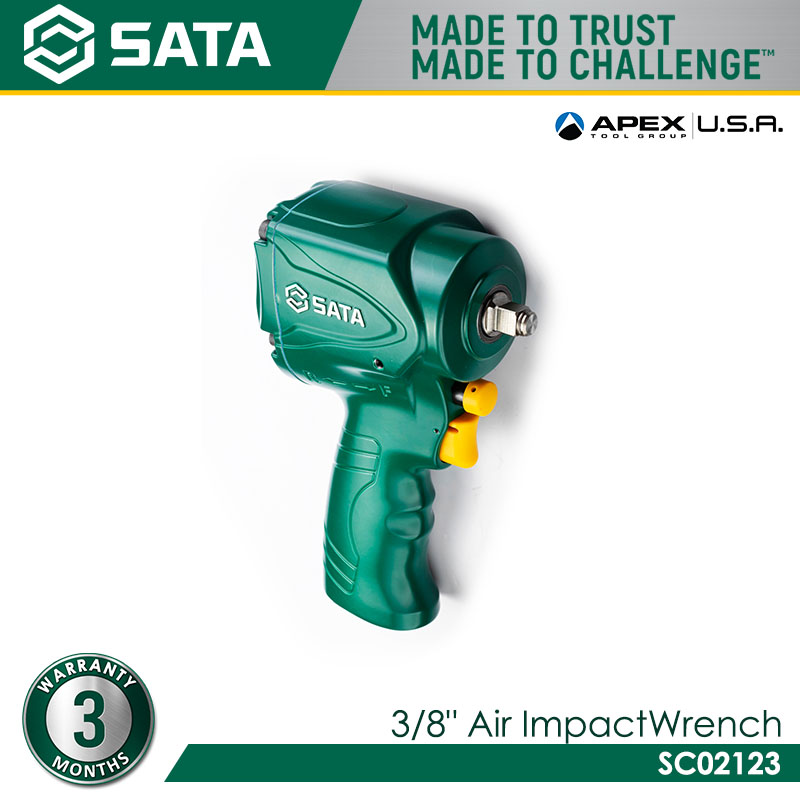

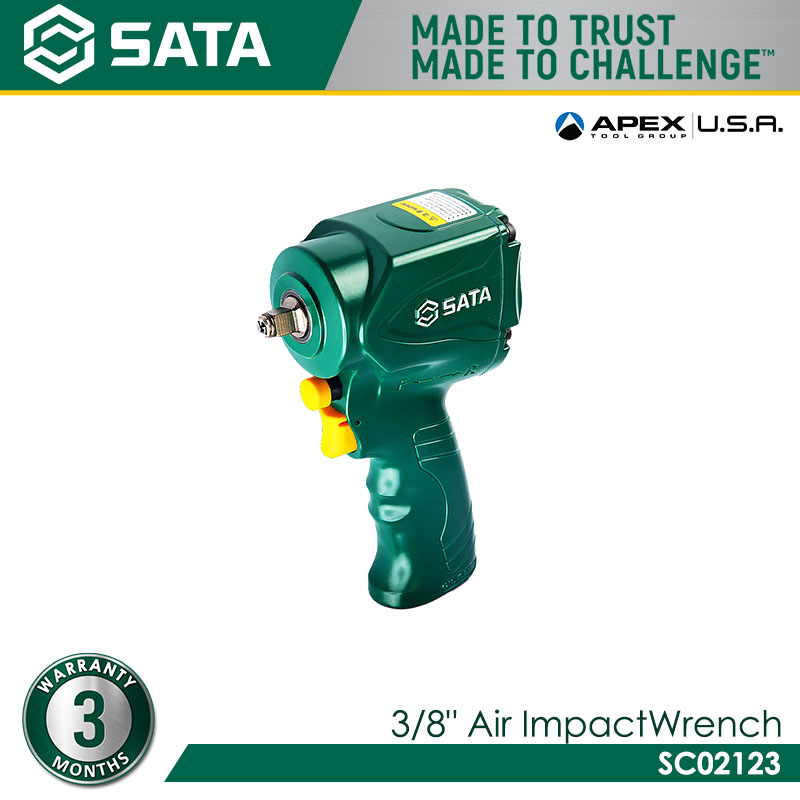

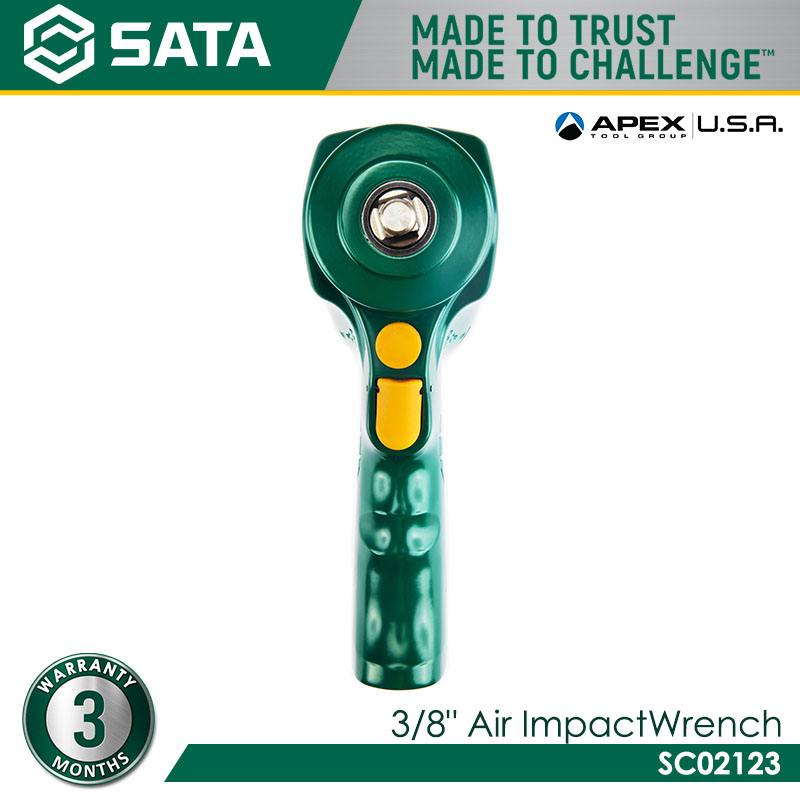

SATA SC02123 3/8″ Air Impact Wrench

•Push-rod reversing knob operated with only one hand

Function 02123
Output End Specification 3/8″
Working Torque (N·m) 350
Max. Reversal Torque (N·m) 500
Free Speed (RPM) 10500
Bolt Tightening Capacity M16
Average Gas Consumption (CFM) 9.9
Noise Level dB(A) 105
L×W×H (mm) 191×118×60
Air Inlet Size 1/4″
Min. Air Hose ID (mm) 10
Working Air Pressure (kgf/cm²) 6.35
Unit Weight (kg) 1.47

Description

  • For tightening capability standard for bolts, refer to bolts with strength level of 12.9 in DIN 267
  • Noise level is sound pressure of level A
  • Working air pressure refers to the real-time dynamic air pressure measured at the air inlet of the product during idling operation;
  • Working torque refers to the accumulated torque actually output by the tool running forward for 5 seconds under working pressure;
  • Maximum reversing torque refers to the torque actually accumulated
    when the tool reverses for 15 seconds under operating air pressure
